Free-Sweeping Attachment Sweepers GSW Models
Uni-Truck System

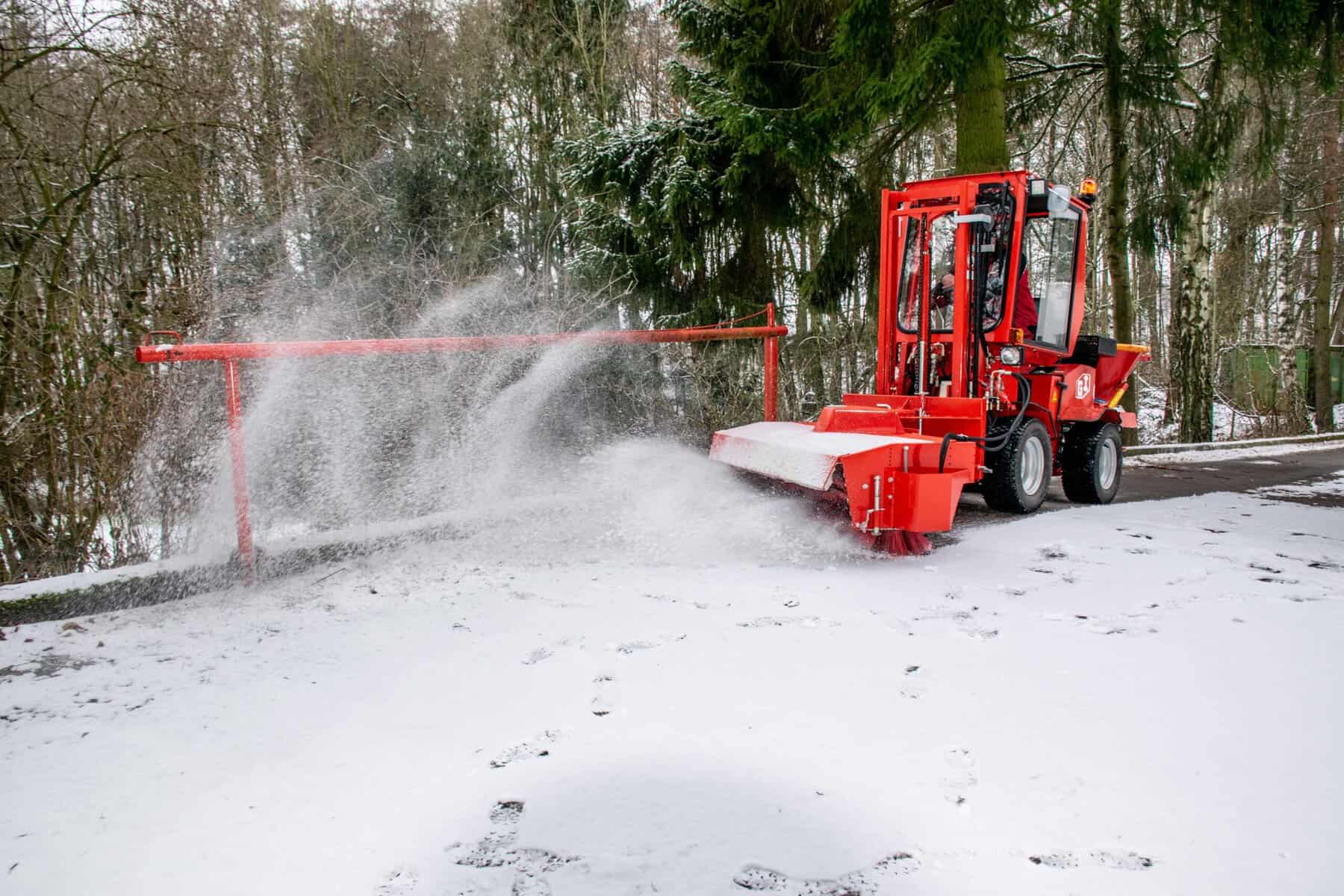

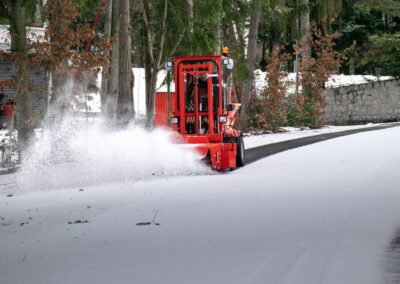

Snow and dirt sweepers of the GSW model series for mounting on the Uni-Truck in the working widths 1.20 and 1.80 m. For free-sweeping use of heavy, wet material. With this snow sweeper, you can thoroughly and efficiently sweep heavy and wet material up to a height of 10 cm to the side. In winter, it is recommended to additionally equip the Uni-Truck in the rear with a salt and grit spreader so that no black ice can form on the cleared surfaces. This is how you can carry out winter maintenance in one operation and be well-prepared for a harsh winter. A pendulum-mounted sweeping roller suspension and the possibility of adjusting 30° to the right or left distinguish this machine.
Typical industries for the use of GSW attachment sweepers
- Crafts
- Industrial companies
- Zoos and agriculture
- Construction sites
- Parks
- Landscaping
- Municipalities
- Service provider
- Roofers
- Cemetery maintenance
Equipment
Available as additional equipment:
Hydraulic inclination
for free-sweeping snow or dirt sweeper, infinitely adjustable to the right and left, complete with quick-release fasteners
Water spray system
Technical data
| Model → | GSW-1200 UT | GSW-1500 UT | GSW-1800 UT |
|---|---|---|---|
| Carrier vehicle | Uni-Truck 4 W 905 | Uni-Truck 4 W 905 / Uni-Truck 4 W 1005 |
Uni-Truck 4 W 1005 |
| Working width | 1200 mm | 1500 mm | 1800 mm |
| Sweeping roller diameter | 600 mm | 600 mm | 600 mm |
| Overall width | 1370 mm | 1670 mm | 1970 mm |
| Length | 1270 mm | 1270 mm | 1270 mm |
| Height | 770 mm | 770 mm | 770 mm |
| Weight (basic unit) | 250 kg | 285 kg | 310 kg |
| Side brush right / left | - / - | - / - | - / - |
| Water spray device | optional | optional | optional |
| Hydraulic unit | - | - | - |
(Technical development reserved)
